9.2.7. 设计说明¶
9.2.7.1. Luban OTA 升级包制作过程¶
注解
OTA升级包配置文件:sw-images.cfg
OTA策略描述文件:sw-description
OTA升级包生成工具:swupdate_pack_swu
9.2.7.1.1. OTA升级包配置文件:sw-images.cfg¶
sw-images.cfg由Luban提供, 用于指导哪些文件会被打包进OTA升级包, 路径为: ${TARGET_BOARD_DIR}/swupdate/sw-images.cfg
9.2.7.1.1.1. SPINAND 平台sw-images.cfg¶
swota_file_list=(
${TARGET_BOARD_DIR}/swupdate/sw-description: sw-description
${BINARIES_DIR}/recovery.itb:recovery
${BINARIES_DIR}/kernel.itb:kernel
${BINARIES_DIR}/boot_logo.png:logo
${BINARIES_DIR}/rootfs_page_2k_block_128k.ubifs:rootfs
#下面这行给使用Page为4K的SPINAND方案预留, 目前注释掉
#${BINARIES_DIR}/rootfs_page_4k_block_256k.ubifs:rootfs
)
注解
指明打包SWUpdate升级包所需的各个文件的位置, 这些文件会被拷贝到out/images/swupdate目录下, 再生成OTA包。
9.2.7.1.1.2. SPINAND 平台sw-images.cfg¶
swota_file_list=(
${TARGET_BOARD_DIR}/swupdate/sw-description
${BINARIES_DIR}/recovery.itb:recovery
${BINARIES_DIR}/kernel.itb:kernel
${BINARIES_DIR}/boot_logo.png:logo
${BINARIES_DIR}/rootfs.ext4:rootfs
)
9.2.7.1.1.3. sw-images.cfg 使用说明¶
sw-images.cfg文件名称是限定的, 名称不对, 编译OTA升级包出错。
关于${TARGET_BOARD_DIR}/swupdate目录下sw-description文件名称, 可以指定为其它名称, 需要对应修改sw-images.cfg的描述信息, 只要最终打包进OTA升级包, 重命名为sw-description并放在第一个文件即可。
比如将sw-description改为sw-description-ubi, 对应修改sw-images.cfg如下:
${TARGET_BOARD_DIR}/swupdate/sw-description-ubi: sw-description
9.2.7.1.2. OTA策略描述文件:sw-description¶
OTA升级包中, 需要包含sw-description文件, 以及本次升级使用到的各个文件, 例如Kernel, RootFS。 整个OTA升级包是cpio格式, 且要求sw-description文件在第一个位置, 包名称要求以.swu结尾才能被SWUpdate程序识别到。
sw-description 文件是SWUpdate官方规定的OTA策略描述文件, 具体语法可以参考SWUpdate官方文档, 使用libconfig格式。
Luban为 eMMC SPINAND 提供了一个示例, 参考sw-images.cfg, 默认指定路径如下:
${TARGET_BOARD_DIR}/swupdate/sw-description: sw-description
9.2.7.1.2.1. SPINAND sw-description 文件使用说明¶
software =
{
/*版本号和描述符*/
version = "1.0.0.0";
description = "Firmware update for Luban Project";
stable = {
/*
* upgrade_recovery stage:
* Running in main system, and upgrade the "recovery" partition,
* then reboot to the new recovery system
* Step1: Download image and upgrade the "recovery" partition
* Step2: Setup bootenv "swu_entry, boot_partition, boot_os, swu_status"
* Step3: Reboot to the new recovery system to run "upgrade_kernel"
*/
/*
* 内层entry, upgrade_recovery,
* 当调用swupdate xxx -e stable,upgrade_recovery 时, 会匹配到这部分, 执行{}内的动作,
* 可以修改, 调用的时候传入匹配的字符串即可
*/
upgrade_recovery = {
images: (
{
filename = "recovery"; //烧录文件名称
device = "/dev/mtd8"; //对应设备节点
type = "flash"; //操作mtd分区
sha256 = "@recovery"; //自动获取对应镜像的sha256值
}
);
/*
* Some key env variables:
* swu_boardname: The selected board name. Here is "stable"
* swu_entry: The upgrade entry selection. Value can be
* "upgrade_recovery" and "upgrade_kernel"
* boot_os: SPL Falcon mode flag. Should be set to "no"
* during OTA
* swu_status: OTA status flag, Value can be "progress",
* "finish"
* swu_reboot: When this flag is set to "yes", the
* system will be reboot when all works done for current
* stage.
*/
/*
* image处理完以后, 需要设置一些标志, 切换状态,
* swu_entry= upgrade_kernel, 下次升级upgrade_kernel,
* boot_partition= recovery, 下次引导recovery里面的内核启动,
* boot_os= no, 临时关闭Falcon模式, 请查看后面注释信息,
* swu_status OTA升级的状态, 备用, Luban添加,
* swu_reboot=yes,升级upgrade_recovery完成, 和外部脚本配合, 指示外部脚本做reboot动作
*/
bootenv: (
{
name = "swu_entry";
value = "upgrade_kernel";
},
{
name = "boot_partition";
value = "recovery";
},
{
name = "boot_os";
value = "no";
},
{
name = "swu_status";
value = "progress";
},
{
name = "swu_reboot";
value = "yes";
}
);
};
/*
* upgrade_kernel stage:
* Running in Recovery system, it will upgrade some key
* partitions, then reboot to main system.
* Step1: Download and upgrade partitons
* Step2: Setup ENV variables, and mark OTA "finish"
* Step3: Reboot to main system
*/
upgrade_kernel = {
images: (
{
filename = "logo";
device = "/dev/mtd5";
type = "flash";
sha256 = "@logo";
},
{
filename = "kernel";
device = "/dev/mtd6";
type = "flash";
sha256 = "@kernel";
},
{
filename = "rootfs";
volume = "rootfs"; //ubi分区名称
installed-directly = true; //读取升级镜像使用流控方式, 不用先拷贝到本地flash上
sha256 = "@rootfs";
}
);
bootenv: (
{
name = "boot_partition";
value = "kernel";
},
{
name = "swu_param"; //情况环境变量
value = "";
},
{
name = "swu_boardname";
value = "";
},
{
name = "swu_entry";
value = "";
},
{
name = "swu_status";
value = "finish";
},
{
name = "swu_reboot";
value = "yes";
}
);
};
};
}
注解
U-Boot环境变量boot_partition用来指导主系统和Recovery系统之间切换过程。
当U-Boot使能了Falcon功能, SPL程序会直接引导内核启动, 不会执行U-Boot程序, 也就不会判断环境变量boot_partition进行系统之间的切换, 因此需要通过设置boot_os=no, 临时关闭Falcon功能。
9.2.7.1.2.2. eMMC sw-description 文件使用说明¶
software =
{
version = "1.0.0.0";
description = "Firmware update for Luban Project";
stable = {
/*
* upgrade_recovery stage:
* Running in main system, and upgrade the "recovery" partition,
* then reboot to the new recovery system
* Step1: Download image and upgrade the "recovery" partition
* Step2: Setup bootenv "swu_entry, boot_partition, boot_os, swu_status"
* Step3: Reboot to the new recovery system to run "upgrade_kernel"
*/
upgrade_recovery = {
images: (
{
filename = "recovery";
device = "/dev/mmcblk0p10";
type = "raw"; //eMMC存储介质
sha256 = "@recovery";
}
);
/*
* Some key env variables:
* swu_boardname: The selected board name. Here is "stable"
* swu_entry: The upgrade entry selection. Value can be
* "upgrade_recovery" and "upgrade_kernel"
* boot_os: SPL Falcon mode flag. Should be set to "no"
* during OTA
* swu_status: OTA status flag, Value can be "progress",
* "finish"
* swu_reboot: When this flag is set to "yes", the
* system will be reboot when all works done for current
* stage.
*/
bootenv: (
{
name = "swu_entry";
value = "upgrade_kernel";
},
{
name = "boot_partition";
value = "recovery";
},
{
name = "boot_os";
value = "no";
},
{
name = "swu_status";
value = "progress";
},
{
name = "swu_reboot";
value = "yes";
}
);
};
/*
* upgrade_recovery stage:
* Running in main system, and upgrade the "recovery" partition,
* then reboot to the new recovery system
* Step1: Download image and upgrade the "recovery" partition
* Step2: Setup bootenv "swu_entry, boot_partition, boot_os, swu_status"
* Step3: Reboot to the new recovery system to run "upgrade_kernel"
*/
upgrade_kernel = {
images: (
{
filename = "logo";
device = "/dev/mmcblk0p8";
type = "raw";
sha256 = "@logo";
},
{
filename = "kernel";
device = "/dev/mmcblk0p9";
type = "raw";
sha256 = "@kernel";
},
{
filename = "rootfs";
device = "/dev/mmcblk0p11";
type = "raw";
installed-directly = true; //使用流控方式
sha256 = "@rootfs";
}
);
bootenv: (
{
name = "boot_partition";
value = "kernel";
},
{
name = "swu_param";
value = "";
},
{
name = "swu_boardname";
value = "";
},
{
name = "swu_entry";
value = "";
},
{
name = "swu_status";
value = "finish";
},
{
name = "swu_reboot";
value = "yes";
}
);
};
};
}
9.2.7.1.3. OTA升级包生成工具:swupdate_pack_swu¶
制作OTA升级包通过功能命令swupdate_pack_swu, 相关文件路径如下:
target/d211/common/post-image.sh
swupdate_pack_swu具体调用了cpio命令进行打包。
使用方法: 在编译主系统完成后, 会自动执行swupdate_pack_swu命令生成<board>.swu。

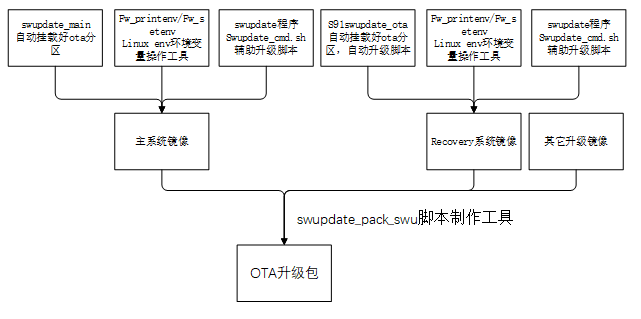

OTA包组成:
解压OTA包的方法:
cpio -idv < xxx.swu
9.2.7.1.4. 升级脚本:swupdate_cmd.sh¶
OTA的升级由SWUpdate程序完成, 但是如何使用SWUpdate完成整个OTA流程, 需要一个应用程序对流程进行控制, swupdate_cmd.sh脚本就是一个OTA流程控制脚本。
swupdate_cmd.sh脚本主要功能如下:
触发和进入OTA升级
生成和传递合适的参数给SWUpdate程序
阶段升级完成后, 控制系统重启
swupdate_cmd.sh位于以下路径:
package/third-party/swupdate/swupdate_cmd.sh
9.2.7.1.4.1. 启动升级脚本命令解析¶
具体解析过程如下：
swupdate_cmd()
{
while true
do
swu_param=$(fw_printenv -n swu_param 2>/dev/null)
swu_boardname=$(fw_printenv -n swu_boardname 2>/dev/null)
swu_entry=$(fw_printenv -n swu_entry 2>/dev/null)
swu_version=$(fw_printenv -n swu_version 2>/dev/null) # 从env 环境变量里面读取swu相关环境变量
echo "swu_param: ##$swu_param##"
echo "swu_boardname: ##$swu_boardname##"
echo "swu_entry: ##$swu_entry##"
check_version_para=""
[ x"$swu_version" != x"" ] && { # 解析swu_version
echo "now version is $swu_version"
check_version_para="-N $swu_version"
}
[ x"$swu_entry" = x"" ] && { # 如果$swu_entry为空, 跳出swupdate_cmd函数
echo "no swupdate_cmd to run, wait for reboot swupdate"
return
}
echo "###now do swupdate###"
echo "##swupdate -v$swu_param -e "$swu_boardname,$swu_entry" ##"
swupdate -v$swu_param -e "$swu_boardname,$swu_entry"
# 执行具体的升级过程
swu_reboot=$(fw_printenv -n swu_reboot 2>/dev/null)
echo "swu_reboot: ##$swu_reboot##"
if [ x"$swu_reboot" = "xyes" ]; then # $swu_reboot == yes 强制重启
fw_setenv swu_reboot
reboot -f
fi
sleep 1
done
}
# 当$swu_entry为空, 跳转到此处执行程序
mkdir -p /var/lock
# 读取传递的参数信息，写入到环境变量里面
[ $# -ne 0 ] && {
echo "config new swupdate"
swu_input=$*
echo "swu_input: ##$swu_input##"
swu_param=$(echo " $swu_input" | sed -E 's/ -e +[^ ]*//')
# echo "swu_param: ##$swu_param##"
echo "swu_param=$swu_param" > /tmp/swupdate_param_file
swu_param_e=$(echo " $swu_input" | awk -F ' -e ' '{print $2}')
swu_param_e=$(echo "$swu_param_e" | awk -F ' ' '{print $1}')
swu_boardname=$(echo "$swu_param_e" | awk -F ',' '{print $1}')
# echo "swu_boardname: ##$swu_boardname##"
echo "swu_boardname=$swu_boardname" >> /tmp/swupdate_param_file
swu_entry=$(echo "$swu_param_e" | awk -F ',' '{print $2}')
# echo "swu_entry: ##$swu_entry##"
echo "swu_entry=$swu_entry" >> /tmp/swupdate_param_file
fw_setenv -s /tmp/swupdate_param_file
# 一次写入所有的环境变量，延长存储介质寿命
sync
echo "## set swupdate_param done ##"
}
swupdate_cmd
# 跳转到swupdate_cmd执行程序
9.2.7.1.4.2. 主系统下启动升级命令过程¶
当带参调用swupdate_cmd.sh时, 脚本取出“-e xxx,yyy”部分信息, 保存到 “swu_boardname”和“swu_entry” 环境变量, 将其余参数原样保存到“swu_param” 环境变量。
SPINAND 主系统下启动升级命令
./usr/lib/swupdate/swupdate_cmd.sh -i /mnt/ota/d211_per2_spinand.swu -e stable,upgrade_recovery
自动调用 swupdate $swu_param -e “$swu_boardname,$ swu_entry”启动升级
9.2.7.1.4.3. Recovery系统下启动升级命令过程¶
当不带参调用swupdate_cmd.sh时, 脚本从env 读取“swu_boardname”、“swu_entry”、“swu_param”环境变量
SPINAND Recovery系统下自动启动升级命令
./usr/lib/swupdate/swupdate_cmd.sh
自动调用 swupdate $swu_param -e “$swu_boardname,$ swu_entry”启动升级
9.2.7.1.4.4. 升级过程中的重启实现¶
当主系统或者Recovery系统对应的程序升级完成以后, 在sw-description里面设置swu_reboot =yes, swupdate_cmd.sh在检测到该值以后, 会调用重启命令。
9.2.7.1.4.5. 环境变量其它用法¶
如果客户需要传递其它信息, 比如wifi密码, ip地址等可以通过修改swupdate_cmd.sh 在env.txt里面添加设置对应。
