2.3. 命令详解

2.3.1. SCons

SCons 是跨平台的构建系统，因此在 Windows 和 Linux 上的用法相同，常用的命令有

2.3.1.1. 项目罗列

命令： scons –list-def: 罗列 SDK 中发布的项目名称

scons --list-def
scons: Reading SConscript files ...
Built-in configs:
0. d13x_demo88-nor-xip_baremetal_bootloader_defconfig - Build for d13x_demo88-nor-xip_baremetal_bootloader
1. d13x_demo88-nor_baremetal_bootloader_defconfig     - Build for d13x_demo88-nor_baremetal_bootloader
2. d13x_demo88-nor_baremetal_helloworld_defconfig     - Build for d13x_demo88-nor_baremetal_helloworld
3. d13x_per1-nand_baremetal_bootloader_defconfig      - Build for d13x_per1-nand_baremetal_bootloader
4. d13x_per1-nand_baremetal_helloworld_defconfig      - Build for d13x_per1-nand_baremetal_helloworld
5. d13x_per1-nor_baremetal_bootloader_defconfig       - Build for d13x_per1-nor_baremetal_bootloader
6. d13x_per1-nor_baremetal_helloworld_defconfig       - Build for d13x_per1-nor_baremetal_helloworld
7. d21x_demo100-nand_baremetal_bootloader_defconfig   - Build for d21x_demo100-nand_baremetal_bootloader
8. d21x_demo100-nand_baremetal_helloworld_defconfig   - Build for d21x_demo100-nand_baremetal_helloworld
9. d21x_demo100-nor_baremetal_bootloader_defconfig    - Build for d21x_demo100-nor_baremetal_bootloader
10. d21x_demo128-nand_baremetal_bootloader_defconfig   - Build for d21x_demo128-nand_baremetal_bootloader
11. d21x_demo88-mmc_baremetal_bootloader_defconfig     - Build for d21x_demo88-mmc_baremetal_bootloader
12. d21x_demo88-nand_baremetal_bootloader_defconfig    - Build for d21x_demo88-nand_baremetal_bootloader
13. d21x_demo88-nand_baremetal_helloworld_defconfig    - Build for d21x_demo88-nand_baremetal_helloworld
14. d21x_demo88-nor_baremetal_bootloader_defconfig     - Build for d21x_demo88-nor_baremetal_bootloader
15. d21x_per2-nand_baremetal_bootloader_defconfig      - Build for d21x_per2-nand_baremetal_bootloader
16. d21x_per2-nand_baremetal_helloworld_defconfig      - Build for d21x_per2-nand_baremetal_helloworld
17. d21x_per2-nor_baremetal_bootloader_defconfig       - Build for d21x_per2-nor_baremetal_bootloader

2.3.1.2. 使用项目

命令：scons –apply-def：设置使用某一个项目， 可以用项目名称，也可以用项目的索引

scons --apply-def=d21x_demo100-nand_baremetal_helloworld_defconfig
scons: Reading SConscript files ...
Load config from target\configs\d21x_demo100-nand_baremetal_helloworld_defconfig

scons --apply-def=8
scons: Reading SConscript files ...
Load config from target\configs\d21x_demo100-nand_baremetal_helloworld_defconfig

2.3.1.3. 配置项目

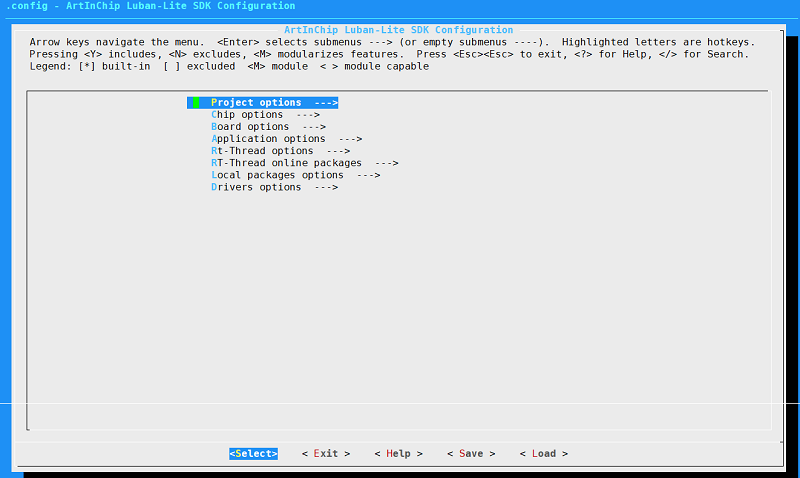

命令：scons –menuconfig：Luban-Lite 使用 menuconfig 界面进行项目的配置工作

scons --menuconfig
../../_images/lbl-menuconfig.png

2.3.1.4. 构建项目

命令：scons：进行构建，默认是简洁模式，不会输出编译选项等信息， 调试时可以使用 scons –verbose 打印编译器选项等辅助信息

scons
scons: Reading SConscript files ...
>>> Extract toolchain Xuantie-900-gcc-elf-newlib-mingw ...

2.3.1.5. 清理项目

命令：scons –clean：清除上一次编译的临时文件。执行该命令后，下一次编译将能保证所有源文件都会被重新编译

scons --clean
scons -c

2.3.2. OneStep

OneStep 是 ArtInChip 为了简化 SDK 的使用而开发的一系列易用性命令

2.3.2.1. Windows

在 Windows 系统中，OneStep 自动集成到 win_cmd.bat 和 win_env.bat 批处理脚本中

2.3.2.2. Linux

在 Linux 系统中需要加入到当前路径中

source tools/onestep.sh

2.3.2.3. 命令列表

Luban-Lite SDK OneStep commands:

h             : Get this help.
lunch [No.]   : Start with selected defconfig, .e.g. lunch 3
me            : Config SDK with menuconfig
m             : Build all and generate final image
c             : Clean all
croot/cr      : cd to SDK root directory.
cout/co       : cd to build output directory.
cbuild/cb     : cd to build root directory.
ctarget/ct    : cd to target board directory.
list          : List all SDK defconfig.
i             : Get current project's information.
buildall      : Build all the *defconfig in target/configs
rebuildall    : Clean and build all the *defconfig in target/configs
